Semantic Triplestore Organization & Reasoning Engine (STORE)
This is my best attempt at a catchy name that mimics the concept of triplestores used in ontologies into plain language (English), because I realize LLM work at a many-to-many mapping possible, but it understands the rules of language the best.
For those unfamiliar “triple store” is a general description to store “triples” (https://en.wikipedia.org/wiki/Semantic_triple) often used in knowledge representation, particularly used with ontologies and semantic web. If you are unfamiliar with RDF/XML, OWL, Turtle, SPARQL and never wanted to approach them, this might be a solution for you in at least leveraging ontologies.
Consider this an attempt to reimagine the concept of triplestores for the LLM era. While traditional triplestores store knowledge in rigid [subject]-[predicate]-[object] formats, unoriginally named SentenceSTORE uses natural language sentences as its fundamental unit of storage.
It’s well known to the healthcare world that chatbots are terrible for medical coding tasks. Personally, I totally get it, given the tokenization techniques, it’s tough to make sense of these alphanumeric patterns from the standpoint of LLM training.
Example, recent NEJM (New Englang Journal of Medicine) AI article: https://ai.nejm.org/doi/full/10.1056/AIdbp2300040
I’ve tested the Gemini Pro 1.5, and generally it’s in line with the NEJM paper. Medical terminology extraction / medical coding is not a native LLM job.
But overall, ontologies have a lot of accrued, carefully curated knowledge that most people are open-access to.
Let me demonstrate why ontologies are hard to use. Using one of the easier (maybe only) libraries in python that allows us to access data in an ontology, and note that this is very rudimentary exploration of ontologies.
We will be using one of the few native-python libraries for dealing with ontologies to extract the triple stores in the OWL files we will be using, owlready2 - https://owlready2.readthedocs.io/en/latest/
pip install owlready2!pip install owlready2Requirement already satisfied: owlready2 in /Users/jung/.pyenv/versions/3.12.6/envs/llm-3.12.6/lib/python3.12/site-packages (0.46)
[notice] A new release of pip is available: 24.2 -> 24.3.1
[notice] To update, run: pip install --upgrade pipfrom owlready2 import get_ontology, get_namespace
onto = get_ontology("ontologies/mondo.owl").load()
onto_hp= get_ontology("ontologies/hp.owl").load()
onto_do= get_ontology("ontologies/doid-merged.owl").load()
obo = get_namespace("http://purl.obolibrary.org/obo/")search_result = onto.search(label="leukemia")
entity = search_result[0]
entityobo.MONDO_0005059entity.label['leukemia']entity.hasDbXref['DOID:1240',
'EFO:0000565',
'HP:0001909',
'ICD9:207',
'ICD9:207.8',
'ICD9:207.80',
'ICD9:208',
'ICD9:208.8',
'ICD9:208.80',
'ICD9:208.9',
'ICD9:208.90',
'ICDO:9800/3',
'MEDGEN:9725',
'MESH:D007938',
'NANDO:2100002',
'NCIT:C3161',
'SCTID:93143009',
'UMLS:C0023418']Note duplication - happens with multiple ontologies referencing same entity (HPO and MONDO has some duplications) and Owlready2’s implementation.
Not a big deal for us, since we’ll just use the unique relationships.
[x.label for x in entity.ancestors()][['hematopoietic and lymphoid cell neoplasm'],
[locstr('specifically dependent continuant', 'en')],
['cancer or benign tumor'],
['leukemia'],
['human disease'],
['disease'],
['hematopoietic and lymphoid system neoplasm'],
[locstr('entity', 'en')],
['neoplastic disease or syndrome'],
[locstr('realizable entity', 'en')],
[locstr('continuant', 'en')],
['neoplasm'],
[locstr('disposition', 'en')],
[],
['hematologic disorder']][x.label for x in entity.descendants()][0:10][['chronic erythremia'],
['acute myelomonocytic leukemia M4'],
['acute myeloid leukemia, t(10;11)(p11.2;q23)'],
['hairy cell leukemia'],
['leukemia'],
['mixed phenotype acute leukemia with MLL rearranged'],
['acute myeloid leukemia, t(9;11)(p21.3;q23.3)'],
['acute myeloid leukemia, KIT exon 17 mutation'],
['therapy related acute myeloid leukemia and myelodysplastic syndrome'],
['acute myeloid leukemia, loss of chromosome 17p']]Note that my goal is to recreate the knowledge stored in this ontology, by writing out the concepts above in plain English. I know this is what LLMs understand, so given the generous token length provided, I figured this is possible.
These functions below basically do this task, grouping concepts for dealing with token length limits.
GOAL: - Take file path of the OWL files and optional predicate string override. - Turn [A]-(descendant)-[B] into “A is a B” - But allow Owlready2’s method names to be replaced with something that LLMs would recognize - My hunch was that “A descendant B” is not as definitive as “A is a B” for the sake of LLMs - it infers grammar / logic pretty well.
# This code itself was iteratively generated via LLM chabot, so bear with the ugliness
def get_dbxref_relationships(entity):
"""
Get direct DbXref relationships for an entity.
Args:
entity: The ontology entity to process
Returns:
list: List of DbXref relationships
"""
relationships = []
entity_label = entity.label[0] if hasattr(entity, 'label') and entity.label else entity.name
# TODO This is ugly but was trial-and-error, someone rewrite it.
# For the time being just wanted to focus on UMLS, SNOMECT, ICD10CM
if hasattr(entity, 'hasDbXref') and entity.hasDbXref:
codes_as_string = ", ".join([
code.replace(":", ' ')
.replace('_2023_03_01', '') # Some SNOMED codes have this suffix
.replace('_CUI', '') # UMLS is prefixed as UMLS_CUI, feel unnecessary
for code in entity.hasDbXref
if code and isinstance(code, str)
and any(code.startswith(prefix) for prefix in ['UMLS', 'SNOMEDCT', 'ICD10CM'])
])
if codes_as_string!="":
relationships.append(f"{entity_label.lower()} can be coded with {codes_as_string}")
return relationships
def get_entity_relationships(entity, relationship_map):
"""
Get unique direct relationships for an entity based on defined relationship mappings.
Excludes self-referential relationships.
Args:
entity: The ontology entity to process
relationship_map: Dict mapping method names to relationship phrases
e.g. {"descendants": "is a", "parts": "is part of"}
Returns:
list: List of unique direct relationships
"""
relationships = set()
# Handle different label types including locstr
def get_label(e):
if hasattr(e, 'label') and e.label:
# locstr objects can be used directly as strings
return str(e.label[0])
return e.name
entity_label = get_label(entity)
# Iterate through each relationship type defined in the mapping
for method_name, relationship_phrase in relationship_map.items():
# Get the method if it exists on the entity
relation_method = getattr(entity, method_name, None)
if relation_method and callable(relation_method):
# Get related entities using the method
related_entities = relation_method()
# Handle both iterator and list returns
if not isinstance(related_entities, (list, set)):
related_entities = list(related_entities)
for related in related_entities:
rel_label = get_label(related)
# Skip if the labels are identical (self-reference)
# Don't want "Diabetes is diabetes"
if rel_label != entity_label:
relationships.add(f"{rel_label.lower()} {relationship_phrase} {entity_label.lower()}")
dbxrefs = []
# Get DbXref relationships (for entity and all descendants)
visited = set()
def process_dbxrefs(current_entity):
if current_entity not in visited:
visited.add(current_entity)
dbxrefs.extend(get_dbxref_relationships(current_entity))
for descendant in current_entity.descendants():
process_dbxrefs(descendant)
return dbxrefs
cross_reference_relationships = set(process_dbxrefs(entity))
relationships = relationships.union(cross_reference_relationships)
return list(relationships)search_result = onto.search(label="*iabete*")
entity = search_result[0]
entityobo.HP_0000819entity.label['Diabetes mellitus', 'Diabetes mellitus']entity.hasDbXref['SNOMEDCT_US:73211009', 'UMLS:C0011849']Have to make sure the entities get written out as english language sentence.
# Key: method name for owlready2
# Value: what string to use for defining the relationship (DTR)
RELATIONSHIP_MAP = {
"subclasses": "is a",
"parts": "is part of",
"connected_to": "connects to",
"located_in": "is located in"
}
get_entity_relationships(entity, relationship_map=RELATIONSHIP_MAP)['neonatal insulin-dependent diabetes mellitus can be coded with UMLS C3278636',
'maturity-onset diabetes of the young can be coded with SNOMEDCT_US 609561005, UMLS C0342276',
'type i diabetes mellitus is a diabetes mellitus',
'insulin-dependent but ketosis-resistant diabetes can be coded with UMLS C1842404',
'type i diabetes mellitus can be coded with SNOMEDCT_US 46635009, UMLS C0011854',
'diabetic ketoacidosis can be coded with SNOMEDCT_US 420422005, UMLS C0011880',
'insulin-resistant diabetes mellitus at puberty can be coded with UMLS C1837792',
'transient neonatal diabetes mellitus can be coded with SNOMEDCT_US 237603002, UMLS C0342273',
'type ii diabetes mellitus can be coded with SNOMEDCT_US 44054006, UMLS C0011860',
'maturity-onset diabetes of the young is a diabetes mellitus',
'diabetes mellitus can be coded with SNOMEDCT_US 73211009, UMLS C0011849',
'insulin-resistant diabetes mellitus can be coded with UMLS C0854110',
'insulin-resistant diabetes mellitus is a diabetes mellitus',
'diabetic ketoacidosis is a diabetes mellitus',
'type ii diabetes mellitus is a diabetes mellitus']
Since the single entity extracton work, we need to use the processing function to extract the whole thing.

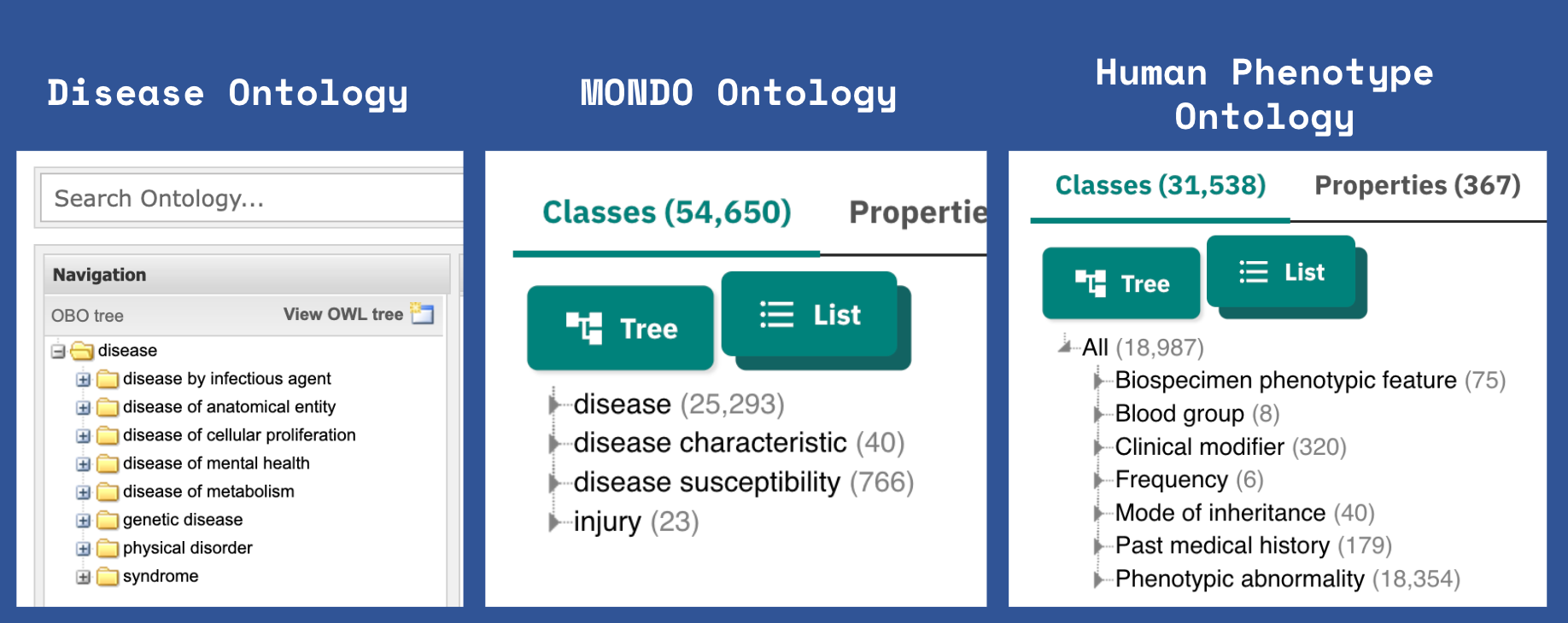

For each ontology there are a handful of “top-level” entities that need to be selected. For example:
Since all ontologies have a hierachical structure, using the top level concept, traversing it down literatively with children concepts, we can cover all the ontology entities.
def process_ontology_relationships(ontology_path, top_level_labels=None, relationship_map=None):
"""
Process ontology relationships recursively starting from specified top-level entities.
Returns sorted unique relationships across all specified entities and their subclasses.
Args:
ontology_path: str, Path to the ontology file
top_level_labels: list[str], Labels of top-level entries to process.
If None, an empty list will be returned
relationship_map: Optional[dict], Mapping of method names to relationship phrases
Returns:
list: Sorted unique relationships found across specified top-level entities and their subclasses
"""
# Default relationship mapping
DEFAULT_RELATIONSHIP_MAP = {
"subclasses": "is a",
"parts": "is part of",
"connected_to": "connects to",
"located_in": "is located in"
}
from owlready2 import get_ontology, get_namespace
# Load ontology
onto = get_ontology(ontology_path).load()
obo = get_namespace("http://purl.obolibrary.org/obo/")
# Use provided or default relationship map
relationship_map = relationship_map or DEFAULT_RELATIONSHIP_MAP
if not top_level_labels:
return []
print("\nProcessing relationships:")
print("-" * 40)
def process_entity_and_subclasses(entity, processed_entities=None):
"""
Recursively process an entity and all its subclasses.
Args:
entity: The entity to process
processed_entities: Set of already processed entities to avoid cycles
Returns:
list: All relationships found for this entity and its subclasses
"""
if processed_entities is None:
processed_entities = set()
if entity in processed_entities:
return []
processed_entities.add(entity)
# Get relationships for current entity
relationships = get_entity_relationships(entity, relationship_map)
# Process all subclasses
for subclass in entity.descendants():
if subclass not in processed_entities:
sub_relationships = process_entity_and_subclasses(subclass, processed_entities)
relationships.extend(sub_relationships)
return relationships
# Find and process top-level entities
all_relationships = []
processed_entities = set()
for label in top_level_labels:
search_results = onto.search(label=label)
if search_results:
top_entity = search_results[0]
relationships = process_entity_and_subclasses(top_entity, processed_entities)
all_relationships.extend(relationships)
print(f"{label}: {len(relationships)} relationships found")
# Remove duplicates and sort
unique_relationships = sorted(list(set(all_relationships)))
print("-" * 40)
print(f"Total unique relationships: {len(unique_relationships)}\n")
return unique_relationshipsI iteratively cherry picked these for performance, as Kaggle gives me trouble. Personal notebook works.
relationships_from_hpo = process_ontology_relationships(
ontology_path="ontologies/hp.owl",
top_level_labels=[
# "Biospecimen phenotypic feature",
# "Blood group",
"Clinical modifier",
# "Mode of inheritance",
# "Frequency",
# "Past medical history",
"Phenotypic abnormality"
],
)
Processing relationships:
----------------------------------------
Clinical modifier: 571 relationships found
Phenotypic abnormality: 155221 relationships found
----------------------------------------
Total unique relationships: 34581
relationships_from_mondo = process_ontology_relationships(
ontology_path="ontologies/mondo.owl",
top_level_labels=[
# "disease",
"human disease",
# "disease characteristic",
# "disease susceptibility", # Has long names
"injury"
],
)
Processing relationships:
----------------------------------------
human disease: 281182 relationships found
injury: 23 relationships found
----------------------------------------
Total unique relationships: 55138
relationships_from_do = process_ontology_relationships(
ontology_path="ontologies/doid-merged.owl",
top_level_labels=[
"disease by infectious agent",
"disease of anatomical entity",
"disease of cellular proliferation",
# "disease of mental health",
"disease of metabolism",
# "genetic disease",
"physical disorder",
"syndrome"
],
)
Processing relationships:
----------------------------------------
disease by infectious agent: 2272 relationships found
disease of anatomical entity: 53917 relationships found
disease of cellular proliferation: 10565 relationships found
disease of metabolism: 2902 relationships found
physical disorder: 382 relationships found
syndrome: 2023 relationships found
----------------------------------------
Total unique relationships: 19803
Just to make string search easier
import polars as pl
from typing import Union, Pattern, List
# All ontology search
# These are just for sanity checking proper processing.
df = pl.from_dict({
"text_relationships": list(set(
relationships_from_hpo +
relationships_from_do +
relationships_from_mondo
))})
hpo_df = pl.from_dict({
"text_relationships": list(set(
relationships_from_hpo
))})
mondo_df = pl.from_dict({
"text_relationships": list(set(
relationships_from_mondo
))})
do_df = pl.from_dict({
"text_relationships": list(set(
relationships_from_do
))})
@pl.api.register_dataframe_namespace("regex")
class RegexFrame:
def __init__(self, df: pl.DataFrame) -> List:
self._df = df
def search(self,
pattern: Union[str, Pattern],
column: str) -> List[str]:
"""Search column using regex pattern. Returns sorted list of matching strings."""
if isinstance(pattern, str):
search_pat = pattern
else:
search_pat = pattern.pattern
return sorted(self._df.filter(
pl.col(column).str.contains(search_pat)
).select(column).to_series().to_list())df.regex.search(pattern="SNOMEDCT", column='text_relationships')[0:10]['2-3 finger cutaneous syndactyly can be coded with SNOMEDCT_US 205139009, UMLS C0432055',
'2-3 toe cutaneous syndactyly can be coded with SNOMEDCT_US 205145001, UMLS C0432040',
'2-3 toe syndactyly can be coded with SNOMEDCT_US 205145001, UMLS C0432040',
'3-m syndrome can be coded with SNOMEDCT_US 702342007, UMLS C1848862, UMLS C3280146',
'3-methylglutaconic aciduria can be coded with SNOMEDCT_US 237950009, UMLS C3696376',
'4-layered lissencephaly can be coded with SNOMEDCT_US 253147000, UMLS C0431375',
'aagenaes syndrome can be coded with SNOMEDCT_US 28724005, UMLS C0268314',
'abdominal aortic aneurysm can be coded with SNOMEDCT_US 155422008, UMLS C0162871',
'abdominal colic can be coded with SNOMEDCT_US 9991008, UMLS C0232488',
'abdominal distention can be coded with SNOMEDCT_US 41931001, SNOMEDCT_US 60728008, UMLS C0000731']len(df.regex.search(pattern="SNOMEDCT", column='text_relationships'))8033# Not a pure function but good for quick check
def get_ontology_counts(search_term):
print(f'{search_term} in Combined: {(len(df.regex.search(search_term, column="text_relationships")))}')
print("-" * 30)
print(f'{search_term} in HPO: {(len(hpo_df.regex.search(search_term, column="text_relationships")))}')
print(f'{search_term} in MONDO: {(len(mondo_df.regex.search(search_term, column="text_relationships")))}')
print(f'{search_term} in DO: {(len(do_df.regex.search(search_term, column="text_relationships")))}')get_ontology_counts("SNOMED")SNOMED in Combined: 8033
------------------------------
SNOMED in HPO: 3448
SNOMED in MONDO: 0
SNOMED in DO: 4645get_ontology_counts("ICD10")ICD10 in Combined: 4996
------------------------------
ICD10 in HPO: 0
ICD10 in MONDO: 1637
ICD10 in DO: 3365get_ontology_counts("UMLS")UMLS in Combined: 37201
------------------------------
UMLS in HPO: 11467
UMLS in MONDO: 20642
UMLS in DO: 6166df.regex.search("UMLS", column='text_relationships')[0:5]['1-2 finger cutaneous syndactyly can be coded with UMLS C4023732',
'1-2 toe complete cutaneous syndactyly can be coded with UMLS C4025140',
'1-2 toe syndactyly can be coded with UMLS C4023726',
'1-3 finger cutaneous syndactyly can be coded with UMLS C4023730',
'1-3 toe syndactyly can be coded with UMLS C4025774']df.regex.search("stroke", column="text_relationships")[0:10]['anterior spinal artery stroke can be coded with UMLS C2931608',
'anterior spinal artery stroke is a arterial disorder',
'anterior spinal artery stroke is a spinal cord ischemia',
'autosomal recessive leukoencephalopathy-ischemic stroke-retinitis pigmentosa syndrome can be coded with UMLS C4749919',
'autosomal recessive leukoencephalopathy-ischemic stroke-retinitis pigmentosa syndrome is a hereditary disease',
'autosomal recessive leukoencephalopathy-ischemic stroke-retinitis pigmentosa syndrome is a syndromic disease',
'cathepsin a-related arteriopathy-strokes-leukoencephalopathy can be coded with ICD10CM I67.8, UMLS C5680354',
'cathepsin a-related arteriopathy-strokes-leukoencephalopathy is a cerebrovascular disorder',
'cathepsin a-related arteriopathy-strokes-leukoencephalopathy is a hereditary neurological disease',
'ischemic stroke can be coded with SNOMEDCT_US 422504002, UMLS C0948008']df.regex.search("moyamoya", column='text_relationships')[10:20]['moyamoya disease 5 can be coded with UMLS C3279690',
'moyamoya disease 5 is a moyamoya disease',
'moyamoya disease 7 can be coded with UMLS C5882748',
'moyamoya disease 7 is a moyamoya disease',
'moyamoya disease can be coded with ICD10CM I67.5, SNOMEDCT_US 69116000, UMLS C0026654',
'moyamoya disease can be coded with UMLS C0026654',
'moyamoya disease is a cerebral arterial disease',
'moyamoya disease is a hereditary neurological disease',
'moyamoya disease with early-onset achalasia can be coded with UMLS C3810403',
'moyamoya disease with early-onset achalasia is a digestive system disorder']Note these are underestimates, since it just counts spaces.
len((". ".join(list(set(relationships_from_mondo + relationships_from_do + relationships_from_hpo)))).split())998762len((". ".join(list(set(relationships_from_mondo)))).split())502867len((". ".join(list(set(relationships_from_do)))).split())178064len((". ".join(list(set(relationships_from_hpo)))).split())357317df = None
hpo_df = None
mondo_df = None
do_df = None
onto = NoneI am resorting to single-ontology mapping.
Generally, the multiple ontology approach prevents code hallucination, but I’ll switch between HPO and Disease Ontology because of the limitations of Kaggle Notebooks.
import os
import google.generativeai as genai
from google.generativeai import caching
from google.generativeai.types import RequestOptions
from google.api_core import retry
from time import sleep
from dotenv import load_dotenv
import json
load_dotenv()
API_KEY = os.environ.get('GEMINI_API_KEY')
genai.configure(api_key=API_KEY)# If you need to clear the cache completely:
def clear_cache():
for c in caching.CachedContent.list():
c.delete()
clear_cache()for c in caching.CachedContent.list():
print(c)Parse any content clinical information, digest it and encode it with standard terminology codes.
BASE_INSTRUCTIONS = """
Generate structured consultation reports from clinical inputs.
Use these status indicators when appropriate:
NEGATION (use both):
❌ finding + "no/absent/without [term]"
SEVERITY:
🔴 severe/critical
🟡 moderate/concerning
🟢 mild/stable
INPUT CLASSIFICATION:
- Clearly state source type: Patient text or question, clinical text, radiology image, pathology image, or photo of a lesion, etc.
REPORT FORMAT:
### Source
[One line describing input type and key context]
### Impression
[2-3 lines maximum capturing key findings/diagnosis]
### Supporting Evidence
- Primary findings, each with:
- Cached ontology and knowledge base mapping
- Only from cached ontology, find codes from terminologies SNOMEDCT_US, ICD10CM, and/or UMLS when present in the cached ontology: Format as `code`.
- Supporting details from input
- Add Markdown table for identified concepts
STRING | TERMINOLOGY | CODE
### Relevant Relationships
- Key ontological associations:
- Direct phenotype/disease links
- Inheritance patterns if applicable
- System-level relationships
FORMAT RULES:
- Use `backticks` for ontology terms
- **Bold** for key matches/findings
- Group related findings
- Brief, evidence-based statements
- Hyperlink SNOMEDCT_US code as: [REPLACE WITH CODE](https://browser.ihtsdotools.org/?perspective=full&conceptId1=[REPLACE WITH CODE]&edition=MAIN/SNOMEDCT-US/2024-09-01&release=&languages=en)
- Hyperlink UMLS code as: [REPLACE WITH CODE](https://uts.nlm.nih.gov/uts/umls/searchResults?searchString=[REPLACE WITH CODE])
# """
# cache_hpo = caching.CachedContent.create(
# model="models/gemini-1.5-pro-002",
# display_name='Human Phenotype Ontology',
# ttl=60*60,
# system_instruction=f"""You are a clinical consultation system that analyzes inputs and provides structured reports
# using ontology-backed reasoning. Use only cached relationships for interpretations.
# Core Functions:
# - Input classification
# - Key finding identification
# - Ontology-based reasoning
# - Evidence structuring
# {BASE_INSTRUCTIONS}
# """,
# contents=". ".join(
# list(
# set(
# relationships_from_hpo
# )
# )
# )
# )
cache_all = caching.CachedContent.create(
model="models/gemini-1.5-pro-002",
display_name='HPO + DO',
ttl=60*60,
system_instruction=f"""You are a clinical consultation system that analyzes inputs and provides structured reports
using ontology-backed reasoning. Use only cached relationships for interpretations.
Core Functions:
- Input classification
- Key finding identification
- Ontology-based reasoning
- Evidence structuring
{BASE_INSTRUCTIONS}
""",
contents=". ".join(
list(
set(
relationships_from_hpo
+ relationships_from_do
)
)
)
)
# cache_do = caching.CachedContent.create(
# model="models/gemini-1.5-pro-002",
# display_name='Disese Ontology',
# ttl=60*60*2,
# system_instruction=f"""You are a clinical consultation system that analyzes inputs and provides structured reports
# using ontology-backed reasoning. Use only cached relationships for interpretations.
# Core Functions:
# - Input classification
# - Key finding identification
# - Ontology-based reasoning
# - Evidence structuring
# {BASE_INSTRUCTIONS}
# """,
# contents=". ".join(
# list(
# set(
# relationships_from_do
# )
# )
# )
# )from IPython.display import display, Markdown
def render_markdown(markdown_text):
display(Markdown(markdown_text))user_input = """My belly hurts 10/10 sharp pain."""
model_cached = genai.GenerativeModel.from_cached_content(cached_content=cache_all)
ontology_response = model_cached.generate_content(
f"""Using ONLY the cached ontology relationships, provide a structured analysis report for the following input: {user_input}
""",
request_options={"timeout": 600}
)
render_markdown(f"{ontology_response.text}")Patient text describing severe abdominal pain.
❌ Appendicitis: Patient denies fever, nausea, or vomiting. 🔴 Severe abdominal pain of unspecified cause. 🟢 Additional symptoms should be collected to determine the cause of the pain.
Sharp pain qualitySevere pain| STRING | TERMINOLOGY | CODE |
|---|---|---|
| Abdominal pain | SNOMEDCT_US | 74400008 |
| Abdominal pain | ICD10CM | R10.9 |
| Abdominal pain | UMLS | C0000737 |
Abdominal pain is a symptom.Severe pain is classified by pain intensity.Sharp characterizes pain quality.user_input = """
Hi AI assistant, I've been experiencing heart palpitations and dizziness for about 3 months.
Can you help me understand what this might be?
"""
model_cached = genai.GenerativeModel.from_cached_content(cached_content=cache_all)
ontology_response = model_cached.generate_content(
f"""Using ONLY the cached ontology relationships, provide a structured analysis report for the following input: {user_input}
"""
)
render_markdown(f"{ontology_response.text}")Patient question describing heart palpitations and dizziness.
🟡 Concerning for a cardiac arrhythmia. Further evaluation is needed to determine the specific type and cause of the arrhythmia. Dizziness may be related to the palpitations or indicate an additional condition.
| STRING | TERMINOLOGY | CODE |
|---|---|---|
| Heart palpitation | SNOMEDCT_US | 80313002 |
| Heart palpitation | ICD10CM | R00.2 |
| Heart palpitation | UMLS | C0030252 |
| Dizziness | SNOMEDCT_US | 404640003 |
| Dizziness | ICD10CM | R42 |
| Dizziness | UMLS | C0042571 |
| Dizziness | UMLS | C0012833 |
Heart palpitation is found in cardiac arrhythmia.Dizziness can be associated with some cardiac arrhythmias.Dizziness can be a symptom of other conditions and may not be directly related to heart palpitation.user_input = """I have diabetes and high blood pressure. For the last 3 days I've been short of breath when moving around, need extra pillows to sleep, and my legs are swollen. I gained 4 pounds this week. What could this mean?"""
model_cached = genai.GenerativeModel.from_cached_content(cached_content=cache_all)
ontology_response = model_cached.generate_content(
f"""Using ONLY the cached ontology relationships, provide a structured analysis report for the following input: {user_input}
"""
)
render_markdown(f"{ontology_response.text}")Patient question describing symptoms of dyspnea on exertion, orthopnea, lower extremity edema, and weight gain in the setting of diabetes and hypertension.
🟡 Concerning for heart failure exacerbation. Patient with history of diabetes and hypertension presents with acute onset dyspnea on exertion, orthopnea, lower extremity edema, and weight gain, which are concerning for acute decompensated heart failure.
dyspnea on exertion.
orthopnea.
pedal edema.
weight gain, increased body weight.
diabetes mellitus.hypertension| STRING | TERMINOLOGY | CODE |
|---|---|---|
| Dyspnea on exertion | SNOMEDCT_US | 267041004 |
| Orthopnea | SNOMEDCT_US | 36748007 |
| Pedal edema | SNOMEDCT_US | 102572006 |
| Weight gain | SNOMEDCT_US | 286680006 |
| Increased body weight | SNOMEDCT_US | 414916001 |
| Dyspnea on exertion | UMLS | C0231807 |
| Orthopnea | UMLS | C0085619 |
| Pedal edema | UMLS | C0235886, C0239340 |
| Weight gain | UMLS | C0043094 |
| Increased body weight | UMLS | C1262477, C2609868 |
Dyspnea on exertion, orthopnea, and pedal edema are all associated with heart failure.Diabetes mellitus and hypertension are risk factors for cardiovascular disease, including heart failure.Increased body weight can exacerbate heart failure symptoms.user_input = """
42F presents with new-onset pancytopenia (WBC 2.1, Hgb 8.2, Plt 95) and hepatosplenomegaly, found to have t(9;22) BCR-ABL1+ with 92% blasts on bone marrow biopsy c/w CML in blast crisis.
S/p TAVR for severe AS (mean gradient 52mmHg, AVA 0.8cm²), now with progressive BiV failure (LVEF 25%, elevated JVP to 12cm) and stage III CKD (GFR 42) requiring optimization of GDMT.
"""
model_cached = genai.GenerativeModel.from_cached_content(cached_content=cache_all)
ontology_response = model_cached.generate_content(
f"""Using ONLY the cached ontology relationships, provide a structured analysis report for the following input: {user_input}
{BASE_INSTRUCTIONS}
"""
)
render_markdown(f"{ontology_response.text}")Clinical text describing a 42-year-old female with CML in blast crisis and biventricular heart failure.
🔴 Chronic Myeloid Leukemia (CML) in blast crisis with pancytopenia and hepatosplenomegaly. 🔴 Severe biventricular heart failure (BiV failure) with reduced ejection fraction (LVEF 25%) and elevated jugular venous pressure (JVP). 🟡 Stage III chronic kidney disease (CKD) (GFR 42).
t(9;22) and BCR-ABL1+ genetic markers confirm diagnosis.| STRING | TERMINOLOGY | CODE |
|---|---|---|
| Chronic Myeloid Leukemia | SNOMEDCT_US | 63364005 |
| Chronic myeloid leukemia, BCR-ABL1 positive | SNOMEDCT_US | 154592009 |
| Chronic myelogenous leukemia | SNOMEDCT_US | 92818009 |
| Chronic Myeloid Leukemia | UMLS | C0023473 |
| Pancytopenia | SNOMEDCT_US | 127034005 |
| Pancytopenia | UMLS | C0030312 |
| Hepatosplenomegaly | SNOMEDCT_US | 36760000 |
| Hepatosplenomegaly | UMLS | C0019214 |
| Congestive heart failure | SNOMEDCT_US | 155374007, 195108009, 42343007 |
| Congestive heart failure | UMLS | C0018801, C0018802 |
| Biventricular heart failure | ICD10CM | I50.9 |
| Elevated jugular venous pressure | UMLS | C0520861 |
| Aortic stenosis | SNOMEDCT_US | 60573004 |
| Aortic valve stenosis | UMLS | C0003507 |
| Chronic kidney disease | SNOMEDCT_US | 155856009 |
| Chronic kidney disease | UMLS | C0022661 |
| Stage 3 chronic kidney disease | UMLS, SNOMEDCT_US | C2317473, 431857002 |
t(9;22) reciprocal translocation creates BCR-ABL1 fusion gene, driving leukemic transformation of hematopoietic cells. Blast crisis phase is characterized by increased myeloblasts.Aortic Stenosis can lead to left ventricular hypertrophy and subsequent heart failure. TAVR intervention aims to alleviate the stenosis, but progression to biventricular failure is observed in this case. Elevated JVP indicates right heart failure.heart failure through volume overload and contribute to pancytopenia through reduced erythropoietin production. Optimal GDMT management is crucial to address the interconnectedness of these conditions. Requires ongoing monitoring given these relationships.from IPython.display import Image
IMAGE_FILEPATH = 'data/1730706850076.jpeg'
Image(filename=IMAGE_FILEPATH, width=400)
image_model = genai.GenerativeModel(model_name="gemini-1.5-pro-latest")
sample_file = genai.upload_file(
path='data/1730706850076.jpeg',
display_name="hiking-rash"
)
uploaded_file = genai.get_file(sample_file.name)
# Step 1: Multimodal model to "describe" the image
image_response = image_model.generate_content(
[
uploaded_file,
"""Describe this medical image with precise clinical observations.
REQUIRED OBSERVATIONS:
### Visual Elements
- Imaging modality/view
- Key anatomical structures
- Notable abnormalities
- Quality/technical factors
FORMAT:
- Clear, clinical language
- Anatomical terminology
- Systematic organization
- Avoid interpretation
- Focus on objective findings""",
],
request_options={"timeout": 600},
)
# Step 2: Use the description to annotate
model_cached = genai.GenerativeModel.from_cached_content(cached_content=cache_all)
ontology_response = model_cached.generate_content(
f"""Using ONLY the cached ontology relationships, provide a structured analysis report for the following input: {image_response.text}
{BASE_INSTRUCTIONS}
"""
)
render_markdown(f"{ontology_response.text}")Photo of bilateral lower legs showing an erythematous maculopapular rash.
Bilateral erythematous maculopapular rash, possibly dermatitis or exanthem. No evidence of blistering or epidermal disruption.
maculepapuleblister❌ (“no visible blistering”)| STRING | TERMINOLOGY | CODE |
|---|---|---|
| Skin rash | SNOMEDCT_US | 271807003 |
| Skin rash | UMLS | C0015230 |
| Erythema | SNOMEDCT_US | 238810007 |
| Erythema | SNOMEDCT_US | 327422003 |
| Erythema | UMLS | C0016382 |
| Erythema | UMLS | C0041834 |
Skin rash can be a manifestation of dermatitis or exanthem.Erythema is a visual characteristic of skin often associated with inflammatory abnormality of the skin.Macule and papule are specific morphological abnormality of the skin.blister suggests that the epidermal layer is intact. from IPython.display import Image
IMAGE_FILEPATH = 'data/consolidation-rml.jpg'
Image(filename=IMAGE_FILEPATH, width=400)
image_model = genai.GenerativeModel(model_name="gemini-1.5-pro-latest")
sample_file = genai.upload_file(
path='data/consolidation-rml.jpg',
display_name="radiology-consolidation")
uploaded_file = genai.get_file(sample_file.name)
# Step 1: Multimodal model to "describe" the image
image_response = image_model.generate_content(
[
uploaded_file,
"""Describe this medical image with precise clinical observations.
REQUIRED OBSERVATIONS:
### Visual Elements
- Imaging modality/view
- Key anatomical structures
- Notable abnormalities
- Quality/technical factors
FORMAT:
- Clear, clinical language
- Anatomical terminology
- Systematic organization
- Avoid interpretation
- Focus on objective findings""",
],
request_options={"timeout": 600},
)
# Step 2: Use the description to annotate
model_cached = genai.GenerativeModel.from_cached_content(cached_content=cache_all)
ontology_response = model_cached.generate_content(
f"""Using ONLY the cached ontology relationships, provide a structured analysis report for the following input: {image_response.text}
{BASE_INSTRUCTIONS}
""",
request_options={"timeout": 600}
)
render_markdown(f"{ontology_response.text}")Frontal chest radiograph demonstrating diffuse, bilateral interstitial and alveolar opacities.
Diffuse lung opacities, possibly representing pneumonia. No pneumothorax or abnormalities of the cardiomediastinal silhouette or diaphragm. Increased density in the lower lung fields due to breast tissue.
pulmonary infiltrates
| STRING | TERMINOLOGY | CODE |
|---|---|---|
| pulmonary infiltrates | UMLS | C0235896 |
| intra-alveolar opacity | SNOMEDCT_US | 10501004 |
| intra-alveolar opacity | UMLS | C0034050 |
| pneumonia | SNOMEDCT_US | 233604007 |
| pneumonia | UMLS | C0032285 |
| pneumothorax | SNOMEDCT_US | 196103008 |
| pneumothorax | UMLS | C0029850 |
Pneumonia is a lung disease.Pulmonary infiltrates is found in pneumonia.Pneumothorax is a lung disease.Interstitial opacity is a finding associated with various lung diseases, including pneumonia.Alveolar opacity is a finding associated with various lung diseases, including pneumonia.from IPython.display import Image
# Image from https://en.wikipedia.org/wiki/Bell%27s_palsy
IMAGE_FILEPATH = 'data/SCR-20241201-cubw.jpeg'
Image(filename=IMAGE_FILEPATH, width=300)
image_model = genai.GenerativeModel(model_name="gemini-1.5-pro-latest")
sample_file = genai.upload_file(
path="data/SCR-20241201-cubw.jpeg",
display_name="Bells Palsy")
uploaded_file = genai.get_file(sample_file.name)
# Step 1: Multimodal model to "describe" the image
image_response = image_model.generate_content(
[
uploaded_file,
"""Describe this medical image with precise clinical observations.
REQUIRED OBSERVATIONS:
### Visual Elements
- Imaging modality/view
- Key anatomical structures
- Notable abnormalities
- Quality/technical factors
FORMAT:
- Clear, clinical language
- Anatomical terminology
- Systematic organization
- Avoid interpretation
- Focus on objective findings""",
],
request_options={"timeout": 600},
)
# Step 2: Use the description to annotate
model_cached = genai.GenerativeModel.from_cached_content(cached_content=cache_all)
ontology_response = model_cached.generate_content(
f"""Using ONLY the cached ontology relationships, provide a structured analysis report for the following input: {image_response.text}
{BASE_INSTRUCTIONS}
""",
request_options={"timeout": 600}
)
render_markdown(f"{ontology_response.text}")Photo of a male’s face, frontal view, showing right-sided facial droop, erythema, and possible edema.
🟡 Right-sided facial asymmetry and erythema concerning for possible facial nerve palsy. Possible mild edema. Image resolution limits definitive diagnosis.
facial asymmetryfacial erythemafacial edema| STRING | TERMINOLOGY | CODE |
|---|---|---|
| facial asymmetry | UMLS | C4022692 |
| facial erythema | SNOMEDCT_US | 20255002 |
| facial erythema | UMLS | C0005874 |
| facial edema | SNOMEDCT_US | 445088006 |
| facial edema | UMLS | C0542571 |
Facial asymmetry can be a finding in facial nerve palsy (Bell’s Palsy).Facial erythema can be associated with inflammation or infection.Facial edema often co-occurs with facial asymmetry in cases of facial palsy. It is also associated with inflammation and infection.from IPython.display import Image
IMAGE_FILEPATH = 'data/SCR-20241201-crfl-2.jpeg'
Image(filename=IMAGE_FILEPATH, width=300)
image_model = genai.GenerativeModel(model_name="gemini-1.5-pro-latest")
sample_file = genai.upload_file(
path="data/SCR-20241201-crfl-2.jpeg",
display_name="Lebron James")
uploaded_file = genai.get_file(sample_file.name)
# Step 1: Multimodal model to "describe" the image
image_response = image_model.generate_content(
[
uploaded_file,
"""Describe this medical image with precise clinical observations.
REQUIRED OBSERVATIONS:
### Visual Elements
- Imaging modality/view
- Key anatomical structures
- Notable abnormalities
- Quality/technical factors
FORMAT:
- Clear, clinical language
- Anatomical terminology
- Systematic organization
- Avoid interpretation
- Focus on objective findings""",
],
request_options={"timeout": 600},
)
# Step 2: Use the description to annotate
model_cached = genai.GenerativeModel.from_cached_content(cached_content=cache_all)
ontology_response = model_cached.generate_content(
f"""Using ONLY the cached ontology relationships, provide a structured analysis report for the following input: {image_response.text}
{BASE_INSTRUCTIONS}
""",
request_options={"timeout": 600}
)render_markdown(f"{ontology_response.text}")Photo of head and neck, upper extremities, thorax, and abdomen taken during a basketball game.
🟢 No apparent abnormalities of the head and neck, upper extremities, thorax, or abdomen.
Neck musculature present and appears normal.Beard present, no abnormalities described.Facial features visualized, no abnormalities described.Shoulders, arms, hands, and fingers visualized, no abnormalities described.Chest and upper back visualized, no abnormalities described.| STRING | TERMINOLOGY | CODE |
|---|---|---|
| Neck musculature | ||
| Beard | ||
| Facial features | ||
| Shoulders | ||
| Arms | ||
| Hands | ||
| Fingers | ||
| Chest | ||
| Upper back |
Neck musculature is part of the musculoskeletal system.Beard and facial features are part of the integumentary system.Shoulders, arms, hands, and fingers are components of the upper extremity, which is part of the appendicular skeleton.Chest and upper back are parts of the thorax.thorax contains organs of the cardiovascular system and respiratory system.abdomen contains organs of the digestive system, urinary system, and parts of the reproductive system.As much as the flashy innovation doesn’t exist with this project, I find the robustness to handle almost any input related to clinical AND biomedical text impressive.
Given many are either: - Dismissing LLM-based entity linking as impossible task. - Need a very complex RAG-based, GraphDB based mechanism for fuzzy retrieval.
This route of representing triplestores as plain-English, I believe gives most bang-for-the-performance without having to commit to a tech stack commitment.
